What it is:

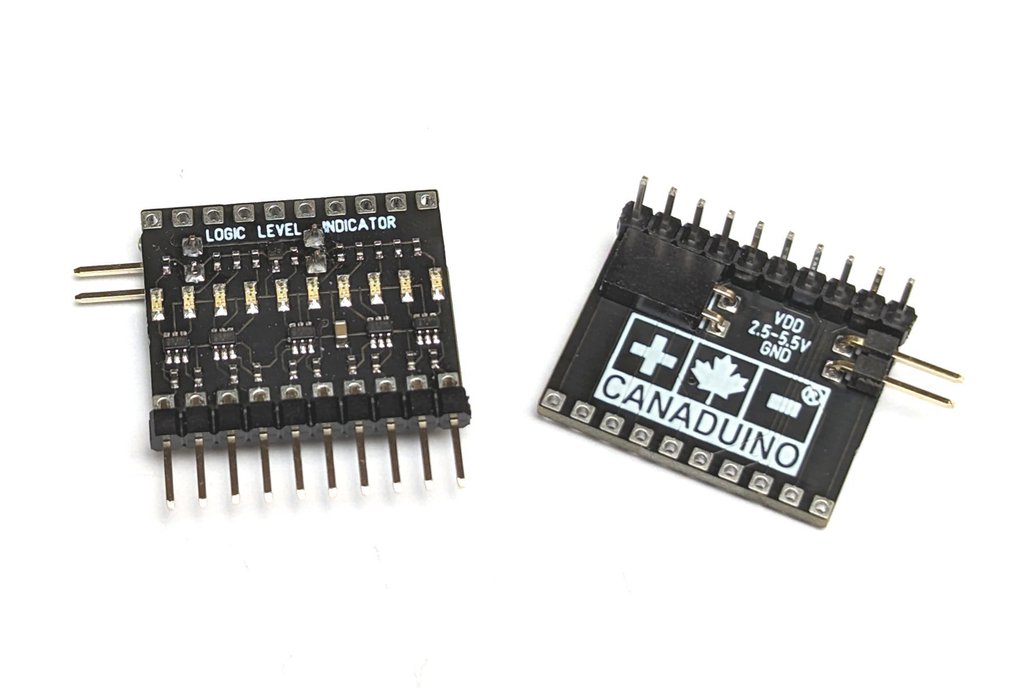

The CANADUINO® 10-bit Breadboard Logic Level Indicator is only 25*19.5mm small and shows the level of 10 different signals.

The 10 high-active channels have an input impedance of about 1Megaohm and draw very low current from the signal pin. Only about 2.5 Microampere leak-current are required to trigger the input “high” and to activate the LED.

The supply voltage must be in the range of 2.5-5.5V. Since every single module has a supply input and output connector, modules can just be cascaded and only need power supply at the first or last module.

The 10 signal lanes are routed through the module, from one side to the other. Therefore, you can connect your test signals on either side of the module.

In the bag:

2 x Logic Level Indicator module 2 x 10 pin male header strip straight 2 x 10 pin male header strip 90 deg. 2 x 2 pin male header 90 deg. (power supply) 2 x 2 pin female header 90 deg. (power supply) (headers are not assembled and require soldering)
