What is it?

CANADUINO ESP32 PLC-100 V1 is a ready assembled and tested new version of our 100x80mm small Programmable Logic Controller module. It adds Wi-Fi 6, Bluetooth 5, ZigBee, more memory and a lot more processing power to the familiar design.

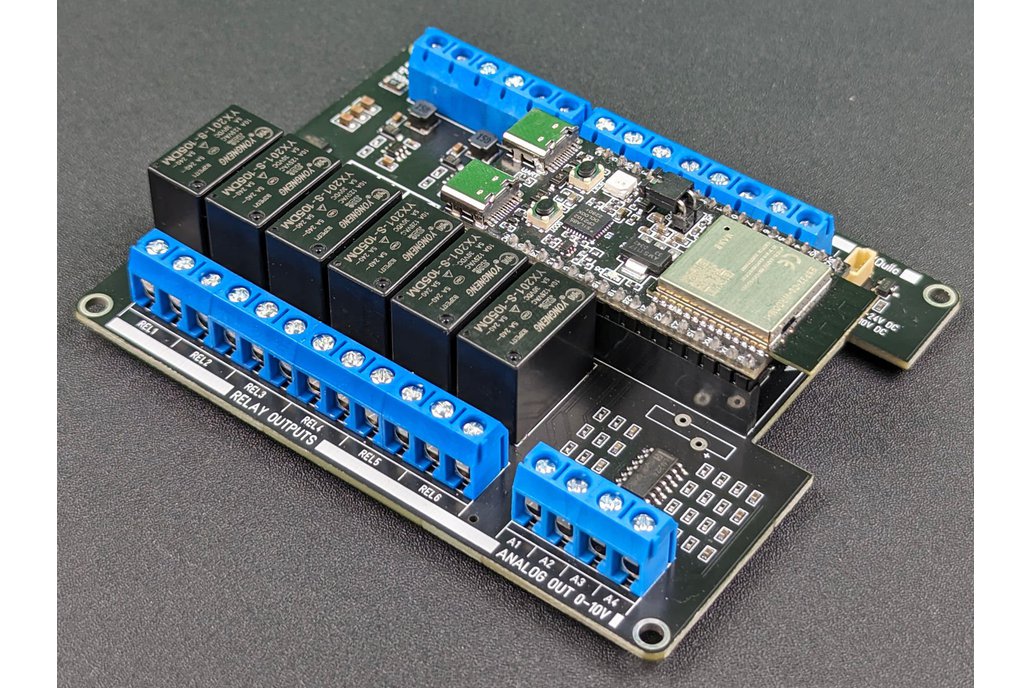

The CANADUINO ESP32 PLC-100 V1 is a fully fitted, tiny Programmable Logic Controller for the Espressif ESP32-C6-DevKitC module (sold separately) and comes with a footprint of just 100 x 80mm. It offers a very affordable opportunity to add programmable controls to different kinds of applications and supports the most common wireless communication protocols.

ESP32 PLC-100 can be programmed using Arduino IDE, Open-PLC, different ladder programming tools, or code-free applications like Visuino from Mitov.

ESP32 PLC-100 is extremely budget-friendly and provides a multitude of functions and power compared to much more expensive PLCs from big brands like ABB or Siemens.

This version of our PLC-100 module has a Qwiic-compatible I2C connector (3.3V logic level) on board which allows for easy expansion with sensors, displays, or any other I2C compatible devices.

A high-precision RTC chip DS3231 supports you with scheduled and timer controlled applications.

Features:

– Power supply 12*-24V DC, 0.5A – 4 analog 0-10V inputs (adjustable res.) – 4 analog 0-10V outputs (2.5mV res.) – 4 digital inputs 3.3-24V – 6 digital 250V/5A relay outputs – I2C bus (3.3V) with Qwiic connector for sensors, displays etc. – Supply voltages for auxiliary devices: + 3.3V (100mA, through I2C bus) + 5V (100mA) on terminal block + 10V (100mA for 0-10V devices, on terminal block) – DS3231 real-time-clock with backup battery – PCB dimensions: 100 x 80mm

Options:

The required Espressiv ESP32-C6-DevkitC module is optional available. You might be able to get it cheaper from Aliexpress or Amazon, but you can just add it to your order here as well.
