What is it?

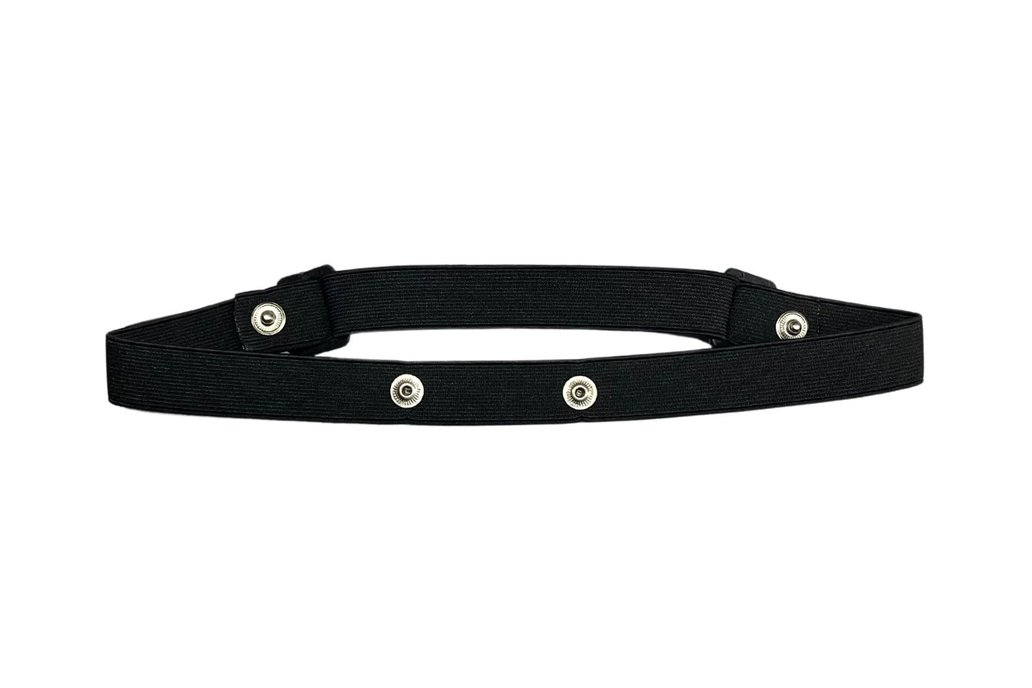

Brain BioAmp Band (EEG Band) is a multi-channel stretchable band that can be connected to BioAmp EXG Pill with BioAmp Cable to record brain signals hassle-free. You can get either a 2-channel EEG Band or a 6-channel EEG Band according to your project or research requirements.

Brain BioAmp Band (EEG Band) - 2 Channels:

It can be used to record EEG signals up to 2 channels either from the visual cortex (back of your head) or the prefrontal cortex (on the forehead as shown below). You just have to connect the EEG band with BioAmp EXG Pill via BioAmp Cable to record/visualize brainwaves and make amazing projects in the brain-computer interface domain (BCI).

Note: We specifically designed it to record EEG but it can also be used to record other biopotential signals as well. It totally depends on your creative juices on where else will you use them to make an innovative project.

Connection Diagram:

Dimensions:

Features and Specifications:

• Length: 15.5 inches
• Stretchability: 2X (Upto 31 inches)
• Usability: Reusable as it comes with washable fabric
• Interface: Snap electrodes
• Compatible Hardware: BioAmp Cable used with BioAmp EXG Pill
• BioPotentials: EEG
• No. of channels: 2
• Wearable: Yes

Note:

• Don't leave the gel residue on snap electrodes longer than an hour as it may damage them over a period of time.
• Wash the EEG Band with liquid soap and rinse it properly. Use it again after it is completely dry.

Brain BioAmp Band (EEG Band) - 6 Channels:

It can be used to record EEG signals up to 6 channels from the visual cortex (back of your head) and the prefrontal cortex (on the forehead as shown below) simultaneously. You just have to connect the EEG band with BioAmp EXG Pill via BioAmp Cable to record/visualize brainwaves and make amazing projects in the brain-computer interface domain (BCI).

Note: We specifically designed it to record EEG but it can also be used to record other biopotential signals as well. It totally depends on your creative juices on where else will you use them to make an innovative project.

Connection Diagram:

Dimensions:

Features and Specifications:

• Length: 15.5 inches
• Stretchability: 2X (Upto 31 inches)
• Usability: Reusable as it comes with washable fabric
• Interface: Snap electrodes
• Compatible Hardware: BioAmp Cable used with BioAmp EXG Pill
• BioPotentials: EEG
• No. of channels: 6
• Wearable: Yes

Note:

• Don't leave the gel residue on snap electrodes longer than an hour as it may damage them over a period of time.
• Wash the EEG Band with liquid soap and rinse it properly. Use it again after it is completely dry.

Demo Video:

We recorded the brainwaves (EEG) from the visual cortex using Brain BioAmp Band (2 Channel).
