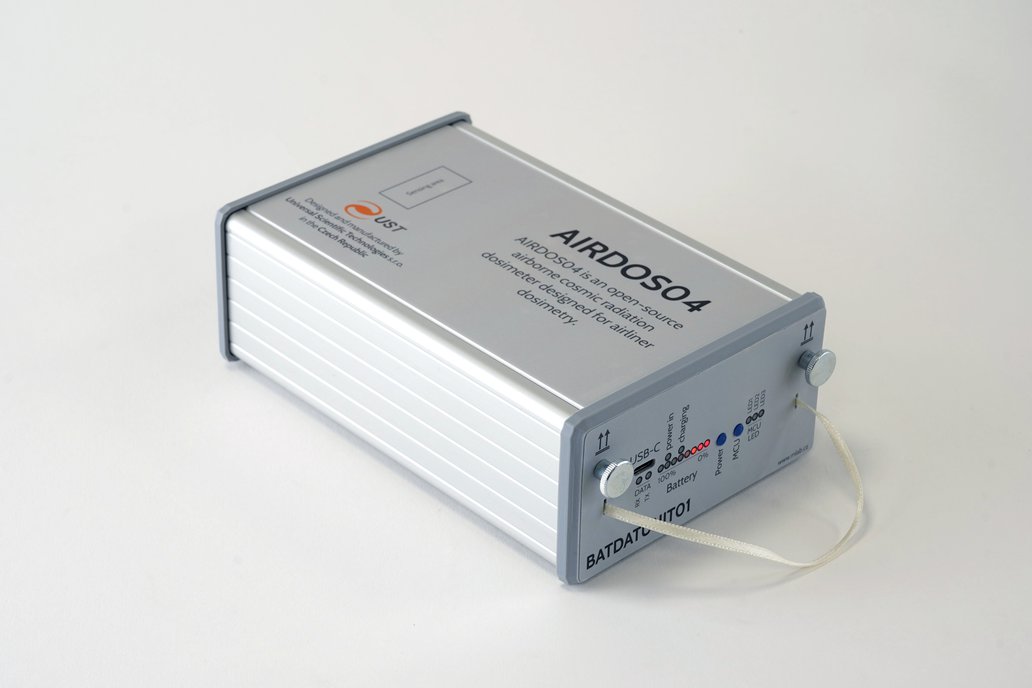

AIRDOS04 is a cutting-edge airborne radiation dosimeter and spectrometer, expertly crafted to measure cosmic radiation and perform dosimetry in mixed ionizing radiation fields. This high-performance instrument is vital for monitoring and analyzing cosmic radiation in aviation environments, offering unparalleled precision and reliability.

Why did we make it?

The inception of AIRDOS04 was driven by the need for an advanced, user-friendly tool capable of accurately measuring cosmic radiation levels in aircraft. Recognizing the importance of radiation safety for flight crews and scientific research, our team designed AIRDOS04 to provide critical data that contributes to understanding and managing ionizing radiation exposure in aviation settings.

What makes it special?

AIRDOS04 stands out due to its unique blend of technical sophistication and practical design:

• Advanced Detection Technology: Utilizing a Silicon PIN diode and 470 ±3 energy channels, it delivers high-precision measurements across a wide energy range (60 keV to 7 MeV). Its high resolution of 15 ±2 keV ensures detailed and accurate data collection.
• Modular and Durable Design: Encased in a sturdy aluminum box, interchangeable modules for data storage and power supply complement the core detection unit. This modular approach not only simplifies maintenance but also enhances the device's longevity and reliability.
• User-Friendly Operation: The instrument's design prioritizes ease of use, featuring automatic activation with LED indicators, straightforward battery level checks, and convenient USB-C charging.
• Environmental Adaptability: Engineered to operate within a temperature range of 0°C to 50°C and an IP30 rating, AIRDOS04 is well-suited for various field conditions. Its size and weight are optimized for integration into aircraft manual bays, making it a perfect fit for aviation applications.
• Radiation Safety Focus: The AIRDOS04 was developed with a strong emphasis on radiation safety, making it an essential tool for flight crews, researchers, and professionals involved in ionizing radiation safety. It provides vital data for effective radiation management and safety protocols in aviation environments.

Aircraft Fly-Crew Cosmic Ray Dosimeter

AIRDOS04 is designed for measuring mixed radiation fields caused by secondary cosmic rays at higher altitudes. Flight altitudes in the atmosphere are a typical example of a mixed radiation field.

Radiation spectra measurement

Because AIRDOS04 is also a spectrometer, it enables detailed ionizing radiation analysis by measuring the deposited energy in silicon. Here is an example of the captured spectra.

Technical parameters

The detector is equipped with indication LEDs that show the status of the device. AIRDOS contains 2 LEDs indicating USB communication, 1 indicating the presence of a power supply, and 3 user LEDs, which can have different meanings according to the used firmware. The internal accumulator status is indicated on the 8 LED bar.

• Silicon PIN diode detector with at least 44 mm³ detection volume
• The effective number of energy channels is 470 ±3
• Deposited energy ranges from 60 keV to 7 MeV
• Energy measurement resolution 15 ±2 keV
• Service interface: USB-C connector (charging and data download)
• Optional GPS interface (with revised BATDATUNIT01)
• Energy source: 18650 Li-ion cells conforms with ≤ 100 Wh / 2g restrictions
• Radiation spectra integration time 10 s
• Maintenance interval (data download, battery recharge) 30 days
• Maintenance duration under 5 minutes
• Approx size LxWxH 166 mm x 107 mm x 57 mm (two of these should fit to Aircraft printed manual bay)
• Weight is 0.88 kg (With five accumulator cells in BATDATUNIT01)
• Environmental operational conditions
  • Device protection: IP30 rating (fully assembled)
  • Operation temperature range: 0°C to 50°C (32°F to 122°F)
  • Operation humidity conditions: non-condensing, 20% to 80% RH

Shipment content:

• AIRDOS04 sensor unit
• BATDATUNIT01 - with 64 Wh Li-ion accumulators
