Gate Drive Transformer for SSTCs and DRSSTCs

Name: Gate Drive Transformer for SSTCs and DRSSTCs
SKU: 23859
Price: 20.00 USD
Availability: Discontinued

Custom Gate Drive Transformer - Low leakage inductance, configurable options available

Designed by WaskaLabs Designs in United States of America

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From DIY Electronics

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$44.99

Sale

duckyPad Pro: Macro Scripting Beyond QMK/VIA

dekuNukem

$80.74 $84.99

uConsole USB ext. board

Joe

$40.00

Flipper Zero Black Onix Board

DTech

$100.00

Gate Drive Transformer for SSTCs and DRSSTCs 1

Gate Drive Transformer for SSTCs and DRSSTCs 2

Gate Drive Transformer for SSTCs and DRSSTCs 3

Gate Drive Transformer for SSTCs and DRSSTCs 4

Gate Drive Transformer for SSTCs and DRSSTCs 5

Gate Drive Transformer for SSTCs and DRSSTCs 6

Gate Drive Transformer for SSTCs and DRSSTCs 7

Gate Drive Transformer for SSTCs and DRSSTCs 8

Custom Gate Drive Transformer - Low leakage inductance, configurable options available

Custom gate drive transformers wound on 3 sizes of toroids for small, medium, and large IGBT / MOSFET switching. Transformers are wound with one multi-wire primary coil input and four secondary coil outputs. If the GDT is intended for use with a half bridge, the extra secondary wires can be left unattached or phased in parallel. All transformers are wound using braided 24AWG wire. Large option uses CAT6 cable. For high voltage bridges or systems under continuous operaiton, it may be advisable to coat the GDTs in epoxy or polyurethane for long term operation to avoid insulator breakdown.

2 wire primary for good current capacity (4 wire for large)
Other turn numbers available (must contact me directly to specify turns)
Tight coupling for low leakage/stray inductances
~8 - 12" leads
Option for pre-marked phases
Optional female 2pin polar MOLEX connectors for inputs and outputs (comes separately, kit style)

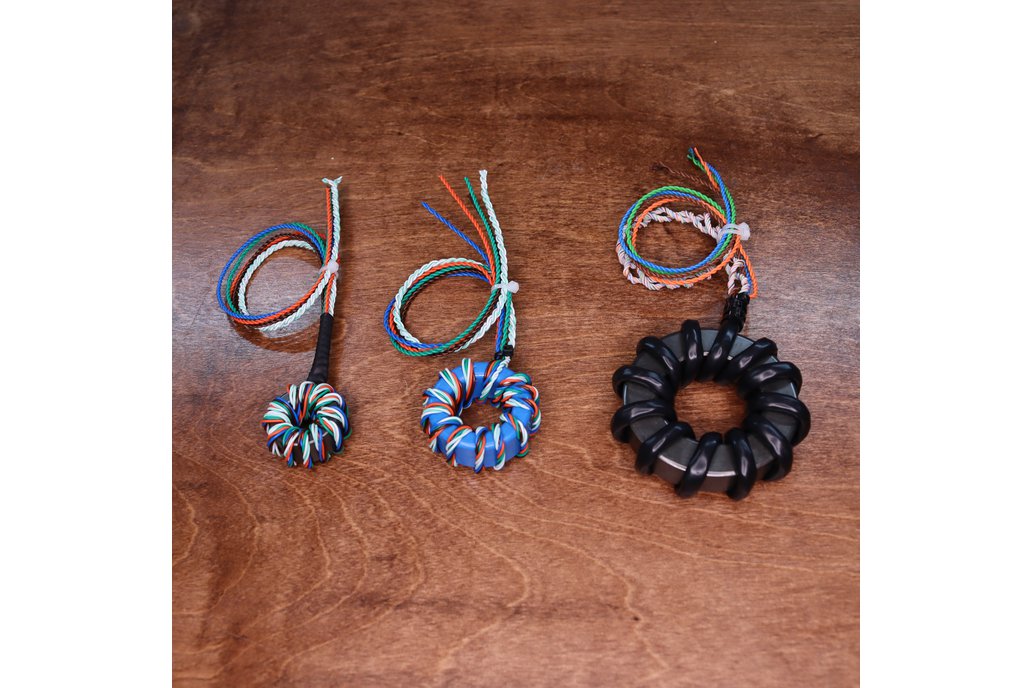

Transformer options:

Small - 12T:
1. Works great for TO-247 topologies such as with the Full bridge Bus V2 in my store or other lower gate currents
2. Core size = 0.6" OD, 1" ID, 0.5" WD
3. Material = N77
Medium - 12T:
1. Works great for small bricks (Mini Bricks and SMK100 size), Multi-Parallel TO-247 bridges, and heavier gate currents
2. Core size = 1.4" OD, 0.9" OD, 0.6" WD
3. Material = N87
Large - 12T:
1. Works great for large bricks like the CM300 and other gates requiring high load currents
2. Core size = 2.4" OD, 1.4" ID, 0.5" WD
3. Material = N77
