Z80-512K is an RCBus and RC2014-compatible module, designed to run RomWBW firmware including CP/M, ZSDOS, and various applications under these OSes. Z80-512K combines functionality of the following RC2014 modules on a single module, thus saving space on the backplane:

• Z80 CPU Module
• 512k ROM 512k RAM Module
• Clock and Reset Module

In addition to these functions, Z80-512K includes programmable CLK2 clock divider, and optional support for battery-backed SRAM, power failure NMI generation, and a watchdog.

A minimal CP/M computer system can be built using Z80-512K module, an RCBus backplane, and a serial port module, such as Z80 SIO or MC68B50 ACIA. For a more capable CP/M system, add a storage module, for example Flock V2 Floppy Disk Controller and Real Time Clock module, or a Compact Flash module.

What is included

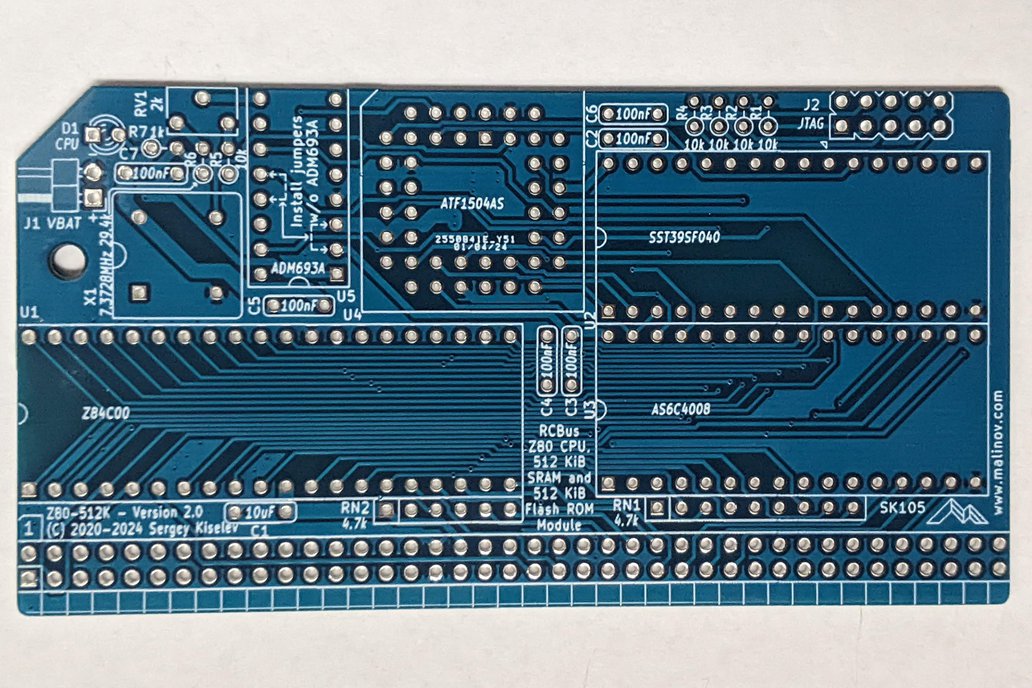

This listing includes only the Z80-512K PCB and a pre-programmed CPLD IC. All other parts can be purchased from most electronic components distributors, or perhaps you already have them in your parts bin! Please refer to the Bill of Materials section of the README file for the parts list.

Looking for the complete kit? Please check Z80-512K - RC2014-Compatible Module Kit
