Renogy Rover RS232/RS485 compatible WiFi module

Name: Renogy Rover RS232/RS485 compatible WiFi module
SKU: 27955
Price: 35.99 USD
Availability: InStock
Rating: 4.94 (8 reviews)

(8 Reviews)

RNG SyNC - Programmable Renogy RS232/RS485 WiFi adapter for Rover series charge controllers.

Designed by West Labs DIY in United States of America

This seller is taking a break until Feb. 15, 2025. Sign up below to get an email when they're back!

Renogy Rover RS232/RS485 compatible WiFi module 1

Renogy Rover RS232/RS485 compatible WiFi module 2

Renogy Rover RS232/RS485 compatible WiFi module 3

Renogy Rover RS232/RS485 compatible WiFi module 4

Renogy Rover RS232/RS485 compatible WiFi module 5

2024-09-01T04:58:21.208Z-pvoutput mqtt.png

2024-05-05T16:33:03.762Z-customer pic.jpg

$35.99

On A Break

RNG SyNC - Programmable Renogy RS232/RS485 WiFi adapter for Rover series charge controllers.

What is it? RNG SyNC is WiFi adapter compatible with Renogy¹ brand solar charge controllers. You can use it to monitor your solar system through WiFi or upload the data to third party cloud or local …

What is it?

RNG SyNC is WiFi adapter compatible with Renogy¹ brand solar charge controllers. You can use it to monitor your solar system through WiFi or upload the data to third party cloud or local MQTT service. The device has been tested with Renogy Rover series controllers, however it might also work with other 'SRNE' compatible controllers that supports BT-1 or BT-2 type bluetooth module.

Why did you make it?

Originally created for my Dad's off-grid solar system, so that I can monitor its performance remotely.

What makes it special?

Easy to use fully assembled PCB, no soldering required!
Hackable: Includes micropython source code.
Easily configure using provided bluetooth webapp.
Monitor through local WiFi or publish data to PVOutput or your own server.
Easily create Home Assistant dashboards using MQTT and auto discovery.

Power connection options

Most Rover series devices can power it directly through data cable. However in case of Wanderer / Adventurer there isn't simply enough power coming from the RJ12 port to power the wireless antenna in Pico W, so a separate USB connection should be provided.

Device	Port	Tested	Comment
Rover 20/30/40/60	RS232	✅
Rover 20/30/40/Lite 60A	RS485†	✅
Rover 100	RS232	✅	Needs USB power
Wanderer/Adventurer	RS232	✅	Needs USB power
Rich Solar 20/30/40	RS232	✅

†RS485 support for newer 2024 Rover models only. If your controller is older model with both RS485 and RS232 ports, choose the RS232 option.

What's included?

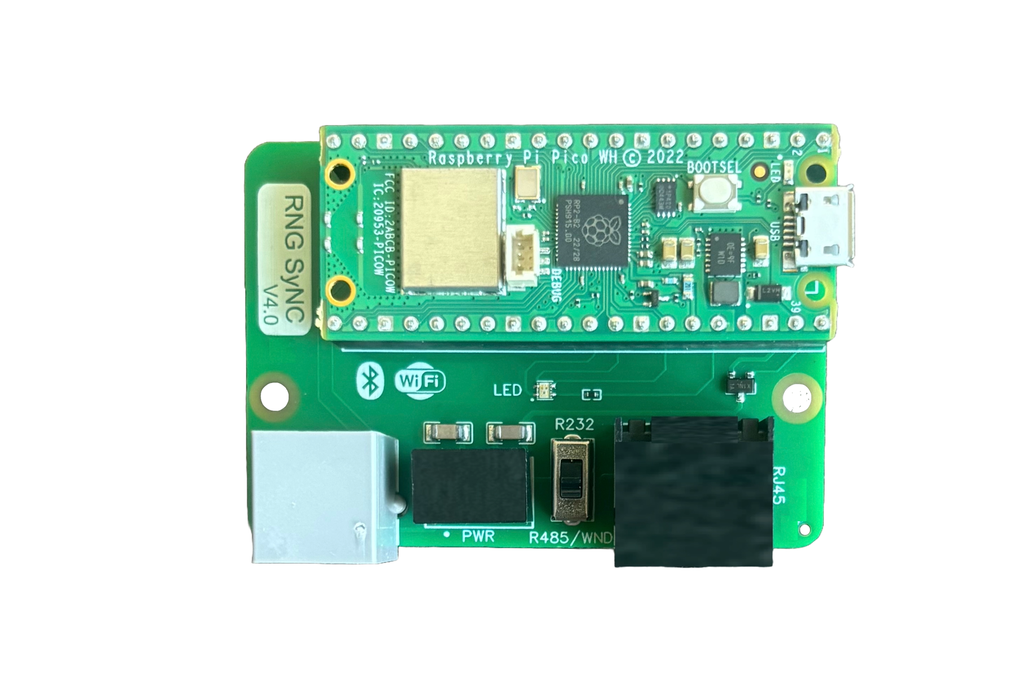

Fully assembled PCB with RJ12/RJ45 female socket
Micropython code for monitoring and cloud upload
Free BLE webapp for configuring the device*

*The in-browser BLE app is natively supported in desktop and android Chrome browsers. In iOS devices you have to use Bluefy browser.

Add-ons

Raspberry Pi Pico WH (or use your own Pico WH)
3D printed box (or print it from any providers like treatstock.com)

What's not included?

RJ12 cable to connect to your RS232 charge controller (link). Make sure it's 6P6C marked as "straight wired".
RJ45 patch cable - If connecting to RS485 port (link)
Micro-USB cable (optional, depending on your device)

Notes

Supports only 2.4GHz WiFi.
Do not connect both RJ12 and RJ45 at the same time. It supports only one device at a time.
If you are using multiple modules with MQTT, remember to give different topic names to each device.

Disclaimer

¹Renogy, Texas Instruments and all other trademarks used here are the property of their respective owners. This is not an official device endorsed by Renogy and is provided only as a DIY project for your home.

Documentation

If you have any questions you can send me a message in Tindie for any product support. I will do my best to respond as quickly as possible.

No country selected, please select your country to see shipping options.

Change Destination Country:

West Labs DIY Shipping Policy:

Most orders ship within 1-2 days. Buyers are responsible for all import duties and taxes when buying from outside the US. You may be required to pay these at your destination country before delivery. International delivery can take up to 2-3 weeks due to global shipping delays.

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (4.75)

Shipping: (5.00)

Communication: (5.00)

Elisha | Jan. 27, 2025

Amazing Addition to Home assistant

Love having my rv solar numbers in my Home assistant app. I had been researching on how to build a product like this and when I found this it made it so much easier. Was plug and play.

Michael | Nov. 7, 2024

Fantastic for Home Assistant Integration

This guy is a lifesaver. I paid $160 for the RenogyOne and $3/mon to be able to monitor and track my system with the Renogy Rover 60A MPPT controller.
The app was lackluster, and the RenogyOne burnt up on me in less than a year.
It was about the same time that I begin exploring Home Assistant, and what a wonderful world I've been missing out on all these years!!
A helpful fella in the community linked me to this product and I immediately gave it a shot.
Shipping was fast, and setup was simple (as soon as I learned the ins and outs of MQTT... and yes, you need to use the IP of your HA server rather than homeassistant.local:8123).
I now have all the data I need to track my data in a beautiful customized format on Home Assistant and I couldn't be happier.
Plus I get to cancel my wasteful $3/mon sub to Renogy.
This morning I just installed the Victron board that this guy also makes, a $50 substitute for the $550 Victron GX.
Very very happy with guys like this, the real heroes of the internet.

Tim | Nov. 26, 2023

Excellent product with clear installation instructions

Product allows me to monitor solar panel function from my Renogy Adventurer charge controller and uplift data to PVOutput.org website.
Excellent help and support from the seller.
Tim UK

Peter | Sept. 25, 2023

Great Modul, Exellent support

After a small adjustment together with the developer of the module I am totally thrilled.
It transfers the data reliably.

Bill | July 15, 2023

Well made - great support!

I wanted a way I could monitor my Renogy Rover MPPT controller in my camper and save historical data using MQTT and InfluxDB on a Raspberry Pi Zero W. This RS232 WiFi adapter fit the bill for what I needed.

I wasn’t familiar with the Pi Pico W and Micropython and I struggled with a few things getting it set up and found some of the documentation to be a bit unclear, though I admit at times I missed seeing information by not reading it carefully.

I found the seller, super-responsive and helpful. I ran into an issue connecting it to the Pi Zero W due to not having it connected to the internet, thus not able to contact a time server needed for the PVOutput connection (which I’m not using). The seller modified the program to now be able to sync the time with the phone when setting up the RNG SyNC, allowing use without an internet connection. I just returned from an off-grid camping trip and everything worked flawlessly.

Christopher | July 8, 2023

Great product, affordable price, and met my needs!

I purchased an RS232 solar interface module, and found it to be exceedingly simple to get up and running with my Renogy Wanderer 30A solar inverter—all I needed was an RJ11 cable (unearthed from the dusty analog phone stratum in the depths of my random box of old cables) and a USB cable providing 5VDC. From there, setting up the module was a simple matter of powering on the device and connecting to it via Bluetooth using the in-browser configuration app created by the seller and hosted on GitHub. I was able to connect it to my Wi-Fi (2.4GHz only), and to add an API key and system ID for PVOutput so I can track my energy production over time.

My initial usage is simple: I have it connected to a solar panel mounted on my shed to charge a battery for lights in the shed, and a couple 12V spotlights outside for chopping firewood. Beyond the immediate utility of having lights in my shed, instrumenting the solar panel on the shed will provide me with an estimate of the solar production possible per square meter for my property given the latitude, tree cover, local weather, etc. such that if I build out a home-size array in the future I will have a better sense of what to expect in terms of output and the array size required. Thank you to the seller for providing a genuinely useful and easy to use product with real utility, all at an affordable price.

Robert | Dec. 9, 2022

perfect

Follow his guide to get it logged into you email and pvout web and plug it in its that simple. Solid work.

Lorenz | Dec. 2, 2022

Products works great with Renogy Rover

I had some issues (on my end) and the seller was very responsive and helped get everything working exactly like I wanted. Awesome seller.
