Photon Power Proto Board

Name: Photon Power Proto Board
SKU: 6270
Price: 1.00 USD
Availability: InStock
Rating: 5.00 (3 reviews)

(3 Reviews)

A small proto board for a Particle Photon or its cousins. Additional components to handle larger power loads.

Designed by wgb.me in United States of America

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A small proto board for a Particle Photon or its cousins. Additional components to handle larger power loads.

Particle changed to the Adafruit Feather footprint, so I am selling these at cost! This is a protoboard for a Particle Photon or one of its cousins with similar footprints (Spark Core, bluz, etc). T…

Particle changed to the Adafruit Feather footprint, so I am selling these at cost!

This is a protoboard for a Particle Photon or one of its cousins with similar footprints (Spark Core, bluz, etc). There is a 5x5 proto area as well as 5x1 rails for 3V3, VIN, and GND. It also includes circuitry and components for a common barrel jack power supply for extra oomph that may exceed typical USB power sources and/or too high for the onboard voltage regulator.

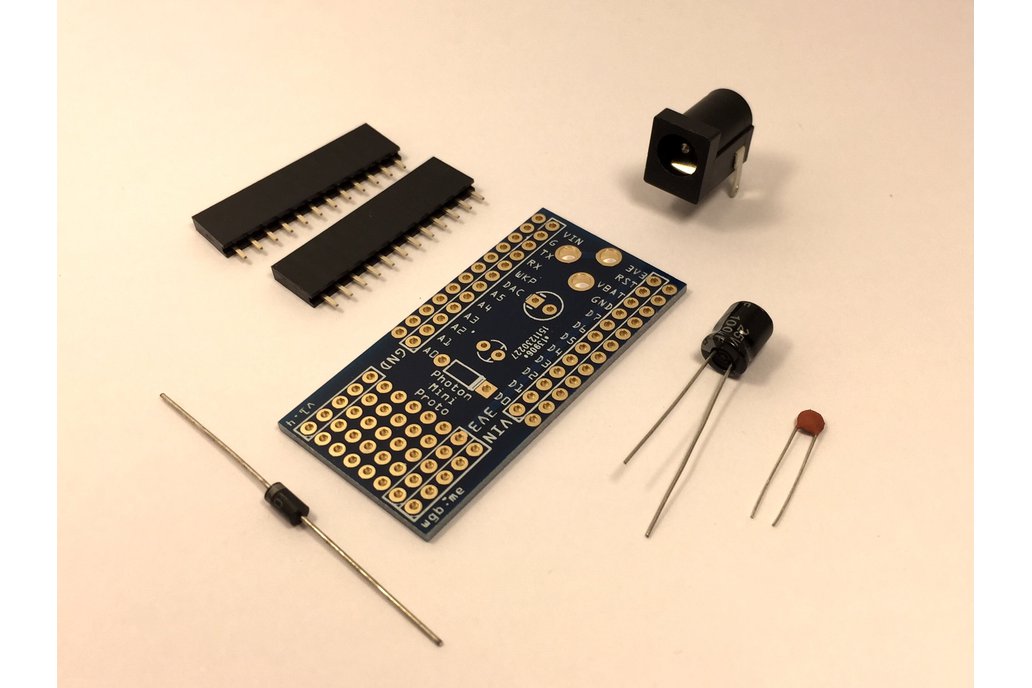

Components included:

Circuit board
100uF capacitor
0.01uF capacitor
1N4001 diode
1x12 female headers (2)
Barrel jack 2.1mm x 5.5mm

No country selected, please select your country to see shipping options.

Change Destination Country:

Quantity	Price
1-4	$1.00
5-9	$0.90
10-19	$0.80
20-29	$0.70
30+	$0.60

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (5.00)

Shipping: (5.00)

Communication: (5.00)

Jim | Dec. 12, 2016

Perfect for the Photon developer, great service.

I recently purchased several of these for a project and was impressed by the quality, the speed of delivery and the low price. It assembles in less than 5 minutes; the instructions and board markings are really clear so there isn't a chance of putting a diode or capacitor in the wrong orientation. The center hole for mounting and tiny footprint made it very easy to work into my project.

I will be buying more... Great board!
