Update for V2.0

• Added a 6-axis IMU (icm-42688-p) similar to StarlightEye with CMOS's VSYNC connected to IMU's FSYNC Sidenotes: The IMU power is controlled by camera enable pin, so it will only power when you are using camera.
• Shrinking the board size to a perfect 39 x 39 mm square. Screw mount is 34 x 34mm and four M2 screw.
• The IR filter (650nm cutout) is now in a screw-in mount type that pre-installed inside the CS mount. You can change the filter glass (dim: 22 mm) if you want.
• The entire package includes: Sensor board, FPC cable, CS mount + IR filter, CS to C mount adaptor and C mount lens cap

Update for V1.4

• Added an ECC608B security chip for those who want to do content authenticity (https://contentauthenticity.org)
• Moved TMP117 to use 3.3V so the temperature sensor will be active even if the camera is not enabled.
• Adding jumper point to select pull-up or pull-down for camera enable pin and the option to disconnect the enable pin.
• Adding a cutout under the sensor for direct sensor cooling.

What is it?

OneInchEye is a cutting-edge, open-source camera board designed specifically for Raspberry Pi Compute Module 4 boards. It features the IMX283CQJ one-inch CMOS image sensor with a color square pixel array, approximately 20.30 million effective pixels, and a 12-bit digital output. This sensor delivers high-resolution images and videos with improved low-light performance and dynamic range. The board also includes an integrated TMP117 temperature sensor for precise temperature measurements.

Compatibility and Incompatibility

Please note that the OneInchEye is designed for Raspberry Pi Compute Module 4 boards with a 22-pin FPC connector with 4-lane MIPI interface and use the same pinout as the Raspberry Pi Compute Module 4 IO Board. Ensure compatibility with your specific board before proceeding. OneInchEye's 4-lane MIPI interface requirements makes it incompatible with most standard Raspberry Pi boards, so it is crucial to verify the compatibility of your Raspberry Pi Compute Module 4 board before using OneInchEye.

Driver Development and Kernel Compilation

Be aware that the driver for OneInchEye is currently in development, and using the camera board may require you to compile the Linux kernel. We are actively working on improving the driver and streamlining the integration process, but please consider this aspect before using OneInchEye in your projects.

Why did you make it?

We created OneInchEye to address the need for a high-quality, affordable, and accessible camera module for advanced Raspberry Pi projects. With the growing popularity of the Raspberry Pi Compute Module 4, we recognized that the community would benefit from a camera board that enhances their projects' capabilities while staying within budget constraints. Our goal was to enable photography enthusiasts, developers, and makers to take their Raspberry Pi projects to the next level with a powerful camera module.

What makes it special?

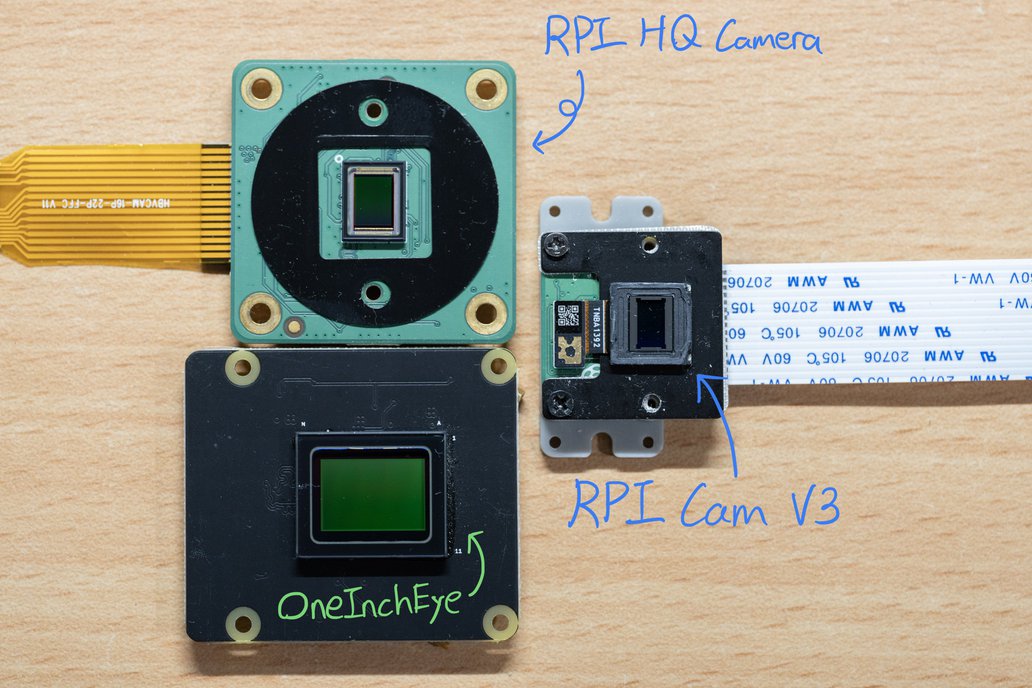

OneInchEye stands out from other camera boards due to its unique combination of features and compatibility:

1. High-resolution imaging: The IMX283CQJ one-inch CMOS image sensor with approximately 20.30 million pixels captures stunning high-resolution images and videos, ensuring crisp visuals for your projects.
2. 4-lane MIPI interface: The high-speed data transfer enabled by the 4-lane MIPI interface ensures smooth performance and real-time image processing.
3. Integrated temperature sensor: The built-in TMP117 temperature sensor adds extra functionality and versatility to your projects by providing accurate temperature readings.
4. Open-source: OneInchEye is built using KiCad v6, an open-source EDA software, allowing for easy modification and customization to suit your needs. The project also includes open-source hardware and software components, fostering a collaborative community for continuous improvement and innovation.
