A Simple LoRa Gateway board using SX1308 and two SX1257
Designed by Will Whang's Electronics in TaiwanThis seller is taking a break until Jan. 4, 2025. Sign up below to get an email when they're back!
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
$10.00
Free Shipping!
$109.00
Free Shipping!
$109.00
Free Shipping!
$32.00
Free Shipping!
Update: New Board is here! https://www.tindie.com/products/13230/ What is it? This is the bare PCB of my SX1308 Raspberry Pi LoRa Gateway Board For anyone interested in building one. This board can …
Read More…New Board is here! https://www.tindie.com/products/13230/

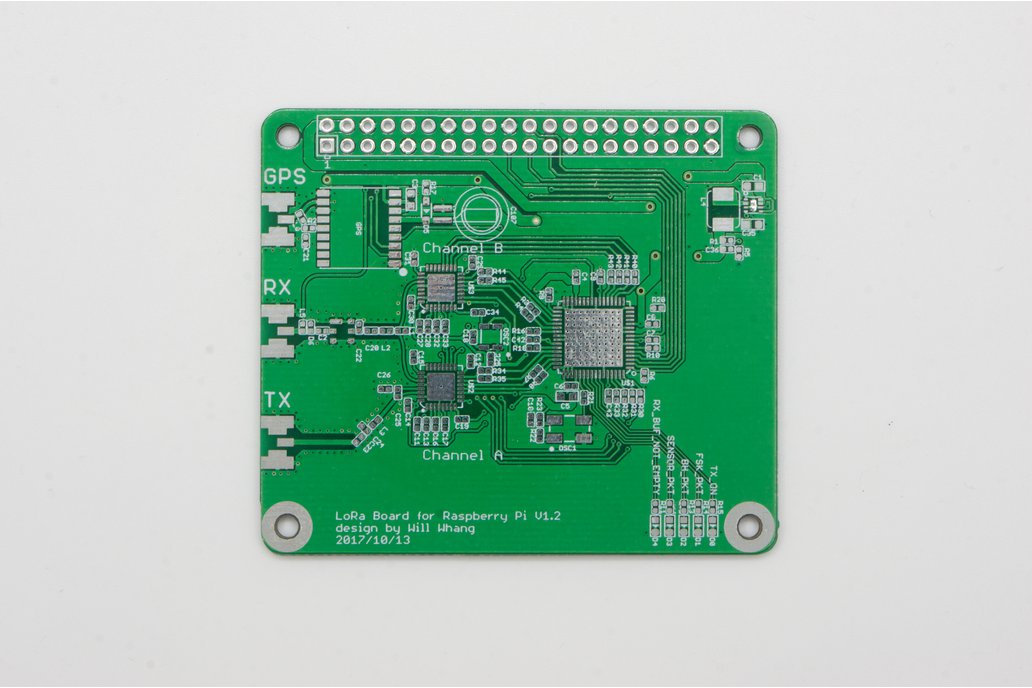

This is the bare PCB of my SX1308 Raspberry Pi LoRa Gateway Board For anyone interested in building one.
This board can handle SX1301 or SX1308, SX1257 or SX1255, but since the RX is combined, both RF frontend has to be the same type(1257 or 1255) GPS module is MAX-7Q, and the DC-DC stepdown is ETA3410 or you can use TPS62061. the full SCH & PCB files are on Github
