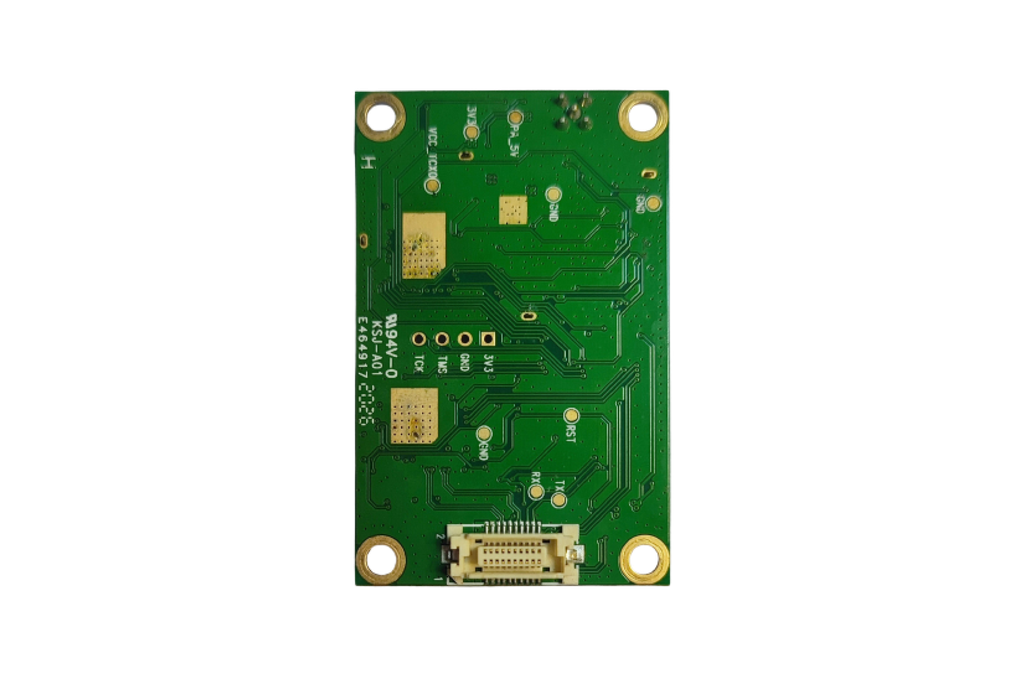

UWB High Power Module UM-209H

Name: UWB High Power Module UM-209H
SKU: 36918
Price: 90.00 USD
Availability: InStock

UWB high-power module with DW1000 chip for precise positioning.

Designed by Woxu Wireless in China

2024-12-25T03:23:38.701Z-UM-209H 866.png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

UWB high-power module with DW1000 chip for precise positioning.

What is it? Product Name：UWB High Power Module Model：UM-209H UWB Chip Model：GD32F4+DW1000 Dimensions：55mm(L)×35mm(W)×5.5mm(H) Weight：8.5g RoHS compliant Why did you make it? The UM-209H module was …

What is it?

Product Name：UWB High Power Module
Model：UM-209H
UWB Chip Model：GD32F4+DW1000
Dimensions：55mm(L)×35mm(W)×5.5mm(H)
Weight：8.5g
RoHS compliant

Why did you make it?

The UM-209H module was developed to meet the need for a high-precision, low-power positioning solution. Utilising UWB technology, this module meets the challenges of precise position tracking with 10cm accuracy.

What makes it special?

Based on DW1000 IEEE 802.15.4a
Tx Power：-41dBm/MHz (typical, adjustable)
Multi-interface GPIO/UART/100wbps Law Interface

Electrical Spec
Supply Voltage：3.3V
Standby Current：158mA
Normal Operating Current：336mA
Maximum Operating Current：511mA RF Spec
Frequency Range：3.77GHz~4.24GHz(CH2)
Tx Power：-41dBm/MHz(typical, adjustable)
Measuring Distance：LOS 500m Physical Spec
Dimension：55mm(L)×35mm(W)×5.5mm(H)
Weight：8.5g Environment Spec
Operating Temperature：-40ºC~75ºC
Storage Temperature：-20ºC~60ºC
Operating Humidity：0%~90% RH, non-condensing
