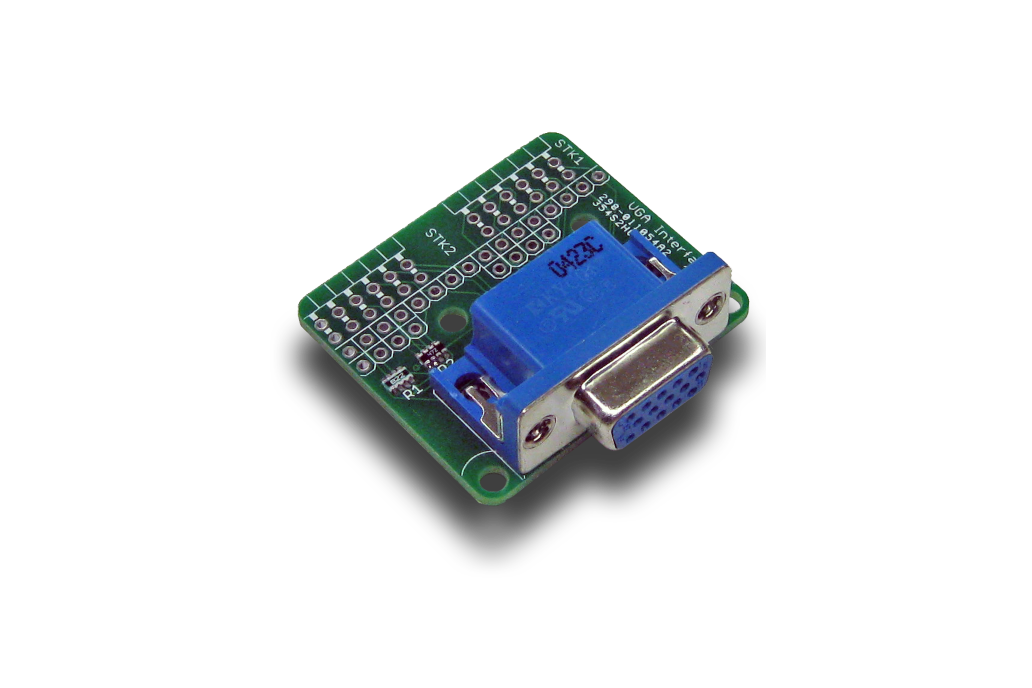

This module lets you interface to a VGA monitor. Just connect it to a PMOD or Wing socket on the StickIt! board and your XuLA can display images with up to 16,384 colors!
As with the StickIt! board, we made the entire StickIt! VGA module design open-source. All of it: bitstreams, schematic, PCB layout, documentation — everything!
FAQ
I ordered a StickIt! VGA module and all I got was a board. No software? No manual? No fancy box!?
When you order a StickIt! VGA module, all you get is the board. That's it. The StickIt! VGA module doesn't need any software itself. And the manual is online. As for the fancy box, well, sorry about that. Think of it as "saving the environment".
What kind of instructions are there for using the StickIt! VGA module?
The StickIt! VGA module manual will tell you how to install your board, and it shows how the buttons are connected to the I/O pins. And there is a design example online that shows how to use it.
