What is this?

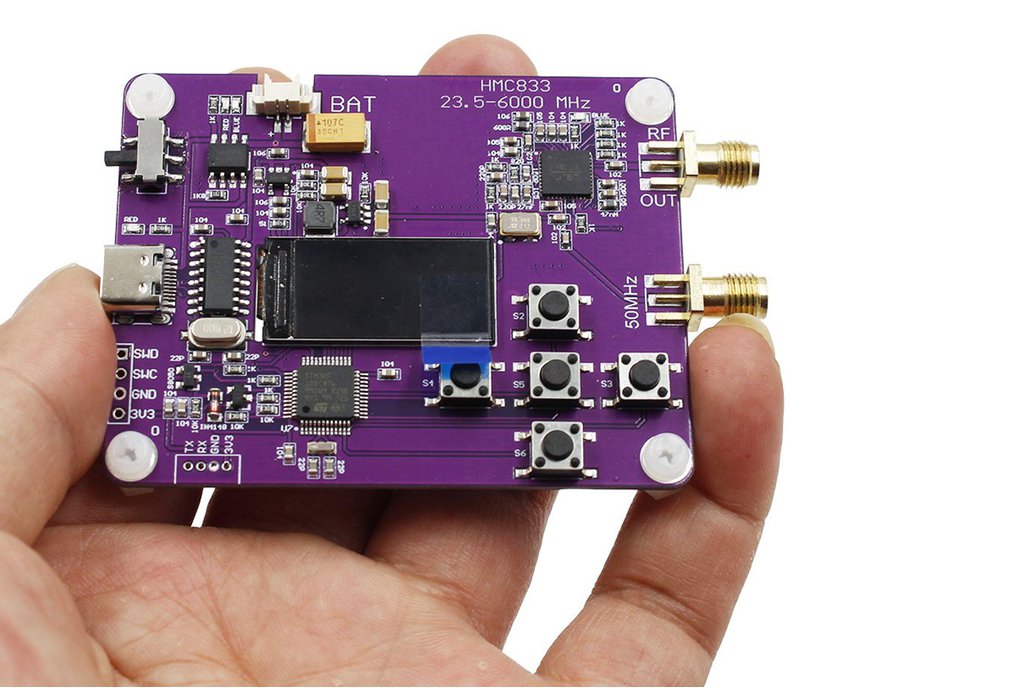

This is a 6GHz RF Signal Generator with a frequency range of 23.5MHz to 6000MHz, designed for RF testing, development, and debugging. It features a 0.96-inch OLED display, adjustable output power (+5dBm, 3 levels), and supports both USB-C and 3.7V lithium battery power. The device offers multiple control methods, including button-based control and serial command operation, making it highly flexible for different applications. It includes three functional modes:

Point Mode: Outputs a fixed frequency, allowing users to manually adjust frequency and power. Sweep Mode: Performs frequency sweeping between a start and stop frequency, supporting both single and continuous sweep. Sweep Set: Enables step frequency and interval time adjustments for precise frequency sweeping. Additionally, it features an auto-save function, ensuring that the device resumes its last settings upon power-up.

Why make it?

Traditional RF signal generators are often bulky, expensive, and complex, making them less accessible for hobbyists, RF engineers, and researchers who require affordable and portable solutions for their projects. Whether you're testing RF circuits, debugging wireless communication systems, or developing RF applications, having a compact and cost-effective RF signal generator is essential. This device provides a user-friendly and efficient solution with easy setup and intuitive control, making it suitable for both beginners and professionals.

Why did you make it?

We developed this RF signal generator to fill the gap between professional-grade, high-cost signal generators and low-cost, limited-functionality alternatives. Our goal was to create a versatile, compact, and affordable tool that meets the needs of RF developers, engineers, and electronics enthusiasts. The integration of OLED display, button control, sweep functionality, and power-saving features ensures that users have full control over their signal generation needs, making RF testing and prototyping more efficient and accessible.
