What is it?

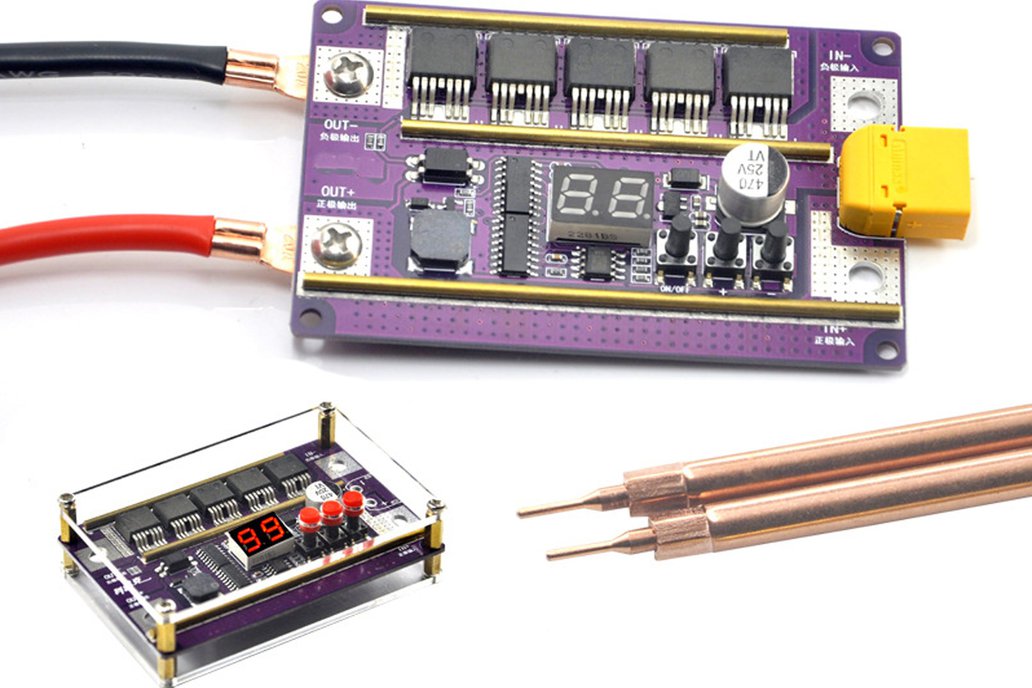

This is a high-quality adjustable spot welder control board designed for precise welding of nickel sheets and cylindrical lithium batteries, including 18650, 21700, and more. With 99 adjustable power levels, this versatile welding kit ensures consistent and reliable welds, accommodating materials with a thickness range of 0.05-0.3mm. Whether you're building battery packs for DIY projects or professional applications, this control board delivers accuracy and durability, making it an essential tool for welding enthusiasts and battery makers.

Why did you make it?

We created this spot welder to address the common challenges of welding precision and compatibility in DIY and professional battery pack assembly. Many existing options on the market lack fine-tuning power settings or struggle to maintain consistent weld quality over extended use. Our design incorporates advanced MOSFET technology, a powerful current-handling capacity, and adjustable power levels to meet the needs of various users, from hobbyists to professionals. By offering support for multiple power sources and ensuring compatibility with a wide range of materials, we aim to empower users with a reliable and flexible welding solution.

What makes it special?

1. 99 Adjustable Power Levels

The spot welder offers 99 gears of power adjustment, allowing precise control to match the material and thickness being welded. This feature ensures clean, strong welds and reduces the risk of overheating or material damage.

1. Wide Compatibility

Supports welding of: Nickel sheets, iron sheets, and stainless steel sheets (0.05-0.3mm). Cylindrical batteries, including 14650, 17490, 18650, 21700, 26650, and 32650. Ni-MH and lithium-ion batteries, making it ideal for battery pack assembly.

1. High Current Design

Equipped with five advanced MOSFETs, this welder delivers a maximum current of 2390A, ensuring consistent, high-quality welds even under demanding workloads. The included dual copper bars enhance current flow and prevent overheating.

1. Flexible Power Supply Options

This control board is designed to work with various power sources for maximum flexibility: Lead-acid batteries: 12V, 20AH-100AH (old batteries preferred; new batteries should not exceed 45AH). Supercapacitors: 4-5 strings with sufficient capacity for stable performance. RC model batteries: 3S-4S, 25C-60C, with 6-10AWG wires and XT60 connectors. Car jump starters: Must feature an EC5 interface for compatibility. Note: Do not use switching power supplies, transformers, chargers, power banks, or unregulated power sources, as these can damage the control board.

1. Durable and Efficient Design

This spot welder is built to last, with the ability to weld thousands of points continuously on nickel sheets. The welds are precise and aesthetically pleasing, making it a reliable tool for long-term projects. Additionally, it supports two pen configurations: 6AWG welding pen: Suitable for 0.05-0.2mm nickel sheets. 10AWG welding pen: Ideal for thicker sheets up to 0.3mm.

1. Safe and Intuitive Operation

Designed with user safety and ease of use in mind, the control board features: Clear visual indicators for power settings and status. Easy adjustment of power levels to match your material and application. Overcurrent protection to prevent damage during prolonged use.

Product Highlights

Precision Welding: The 99-level power adjustment ensures exact control for various materials, providing a clean and strong welding finish. High Current Capacity: Capable of handling up to 2390A, supported by dual copper bars to ensure excellent current flow and heat dissipation. Versatile Applications: Perfect for building DIY battery packs, repairing electronic devices, or professional battery production. Reliable Durability: Weld thousands of points without performance degradation, making it ideal for both hobbyists and professionals. Compact and Lightweight Design: Easy to transport and integrate into your workspace, enhancing its convenience for users.

How to Use It

Prepare the Power Supply: Connect a compatible power source based on the guidelines provided (lead-acid battery, supercapacitor, RC battery, or car jump starter). Adjust the Power Setting: Use the 99-level adjustment knob to set the power level appropriate for your material and thickness. Start Welding: Position the welding pen precisely on the material and apply light pressure to ensure a clean and secure weld.

Note

Always use a compatible power supply to avoid damaging the control board. For lead-acid batteries, avoid using new batteries with capacities above 45AH unless special current-limiting measures are applied. Keep the working environment clean and free from moisture to ensure optimal welding performance. Follow safety precautions, such as wearing gloves and eye protection, when operating the spot welder.

Specifications

Power Adjustment: 99 levels. Material Compatibility: 0.05-0.3mm nickel, iron, and stainless steel sheets. Battery Compatibility: 14650, 17490, 18650, 21700, 26650, 32650. Working Voltage: 9V-16V. Working Current: 90A-180A. Maximum Current: 2390A. Welding Pen Options:6AWG: 0.05-0.2mm nickel sheets. 10AWG: 0.05-0.3mm nickel sheets. Power Supply Options: Lead-acid battery, RC battery, supercapacitor, car jump starter.
