What is it?

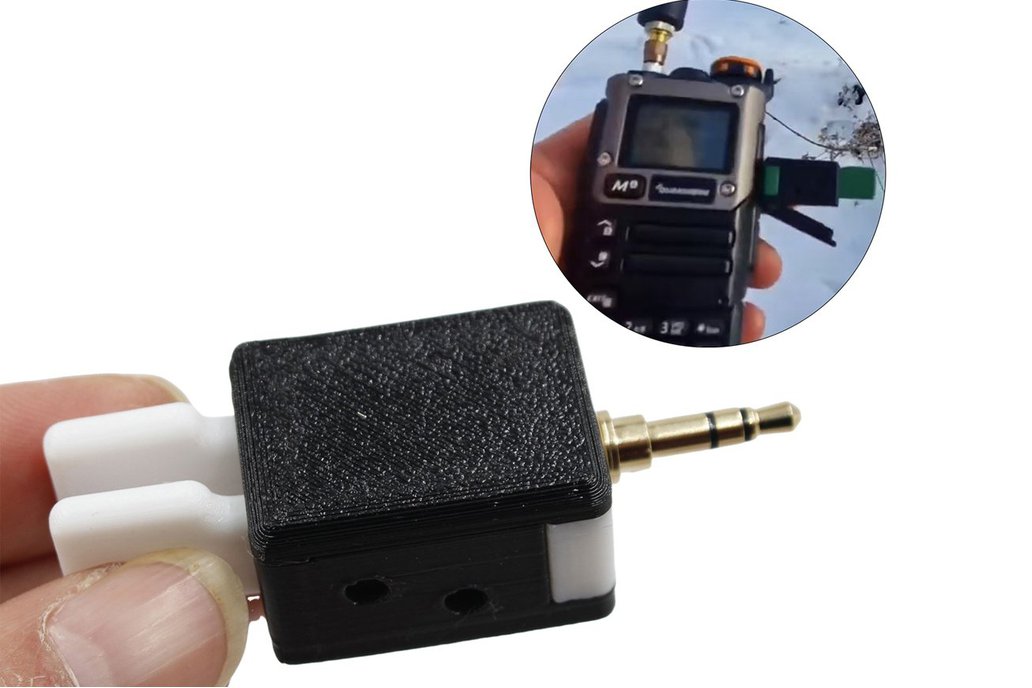

This is a CW dual-paddle automatic key (iambic keyer) specifically designed for the Quansheng UV-K5 and UV-K6 transceivers. It allows users to transmit Morse code using a dual-paddle interface, offering smooth operation, customizable finger tension, and automatic keying functionality. The key is fully compatible with CEC firmware, an open-source firmware for K5/K6 radios that unlocks extended functionality, including CW key input and custom key mapping.

Whether you're a HAM operator, Morse code learner, or DIY radio experimenter, this auto paddle key adds a whole new dimension to your Quansheng device. With this hardware, your K5 or K6 becomes not just a budget VHF/UHF radio, but also a capable CW transmission platform.

Why did you make it?

As Quansheng K5/K6 radios gained popularity in the DIY and HAM radio communities—especially after the release of the CEC custom firmware—many users discovered that the radios lacked a physical CW keying interface. CEC firmware provides the software support for CW keying, but users still need a reliable, plug-and-play paddle key to make use of it.

This project was born out of that gap. We created this compact, efficient, and ergonomic CW paddle key to fill the need for a hardware solution that matches the flexibility and hackability of CEC-enabled Quansheng radios. The goal was to make a CW key that was not just compatible—but actually designed from the ground up for these radios, with proper signal mapping, plug-in compatibility, and a comfortable feel for long sessions of CW operation.

What makes it special?

This isn’t just another Morse code paddle. Here's why it's unique and valuable to the Tindie maker and HAM community:

Purpose-built for Quansheng UV-K5 / K6 Designed specifically to interface with these radios, no hacks or adapters needed.

Full CEC firmware support Seamless compatibility with CEC custom firmware for CW key input, auto keying, and mode switching.

Dual-paddle (iambic) operation Allows for advanced Morse code transmission with dot/dash memory and auto-repeat.

Adjustable finger tension Mechanically optimized to let users fine-tune the resistance of the paddles, improving comfort and speed.

Compact & portable Lightweight and designed to sit perfectly beside your handheld transceiver or field kit.

No external power required Interfaces directly with your radio's GPIO through the microphone jack (firmware-dependent), no batteries or power cables necessary.

FAQ – Frequently Asked Questions

Q1: Does this work with stock firmware? A1: No. This CW paddle key only works with CEC custom firmware installed on your Quansheng K5/K6. The stock firmware does not support paddle key input.

Q2: How do I install CEC firmware on my K5/K6? A2: You’ll need a USB-to-Serial adapter and flash the CEC firmware using tools like FlashBurner or QuanshengToolkit. Please refer to the official CEC GitHub page for detailed instructions.

Q3: Is it plug-and-play after installing CEC firmware? A3: Yes. Once the firmware is installed and CW key input is enabled in the settings, simply plug the paddle into the mic/GPIO port—no extra setup required.

Q5: Can I adjust the finger tension? A5: Yes, each paddle has a tension screw you can tighten or loosen to match your personal preference.

Connection Steps:

Enable CW key input in the firmware menu. Go to Menu > CW Settings > Paddle Mode and turn it ON.

Plug the paddle key into the MIC/GPIO port. Ensure the plug is fully inserted. The device draws no power—it simply acts as a switch interface.

Test transmission. Press either paddle to verify dot (·) and dash (–) transmission. If you hear a tone or see TX indication, it’s working!

Adjust paddle tension if needed. Use the side screws to increase or decrease finger pressure resistance.
