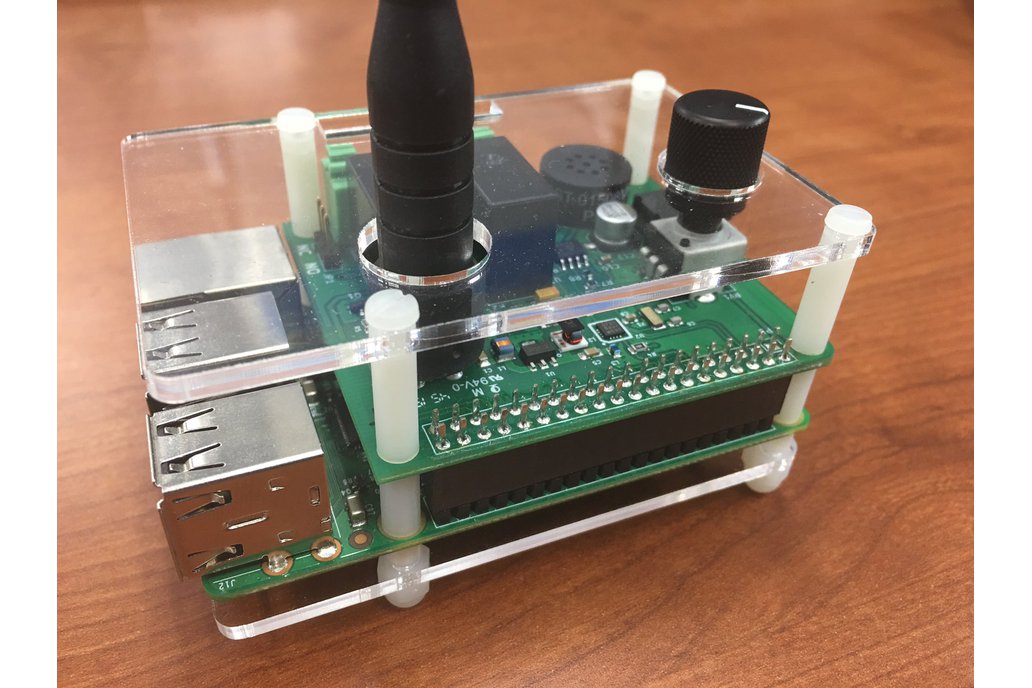

Acrylic case for your RPi-NOAA Weather Radio Receiver combo that includes all the necessary hardware

(Raspberry Pi, Receiver Board, Antenna and Volume knob NOT INCLUDED)

Clear 1/8" acrylic case includes a top and a bottom plate. The top has cutouts to accommodate a volume knob, if you would like to install one, cutout for an antenna or antenna cable hookup, and also a cutout to gain access to the spring loaded relay connections of the NOAA Weather Radio Receiver board. Acrylic will be shipped with the original protective paper coating still intact. You still be able to see (and smell...) the laser cut perfection! Just remove the paper and you are ready to go.

Caution!! Removing the acrylic paper could generate quite a bit of static electricity so I would not perform this close to exposed electronic devices.

Kit Includes:

• 4-40 x 1 3/4" Nylon Screws (4)
• No.4 x 5/8" Spacers (4)
• No.4 x 7/16" Spacers (4)
• No.4 x 3/16" Spacers (4)
• 4-40 Acorn Nuts (4)

Easiest way to install everything is by doing it on its side so the spacers do slide off. These are all nylon parts so you should be able to perform this by hand without any tools, but feel free to use tools if you need to.

• Slide screws through the top plate.
• Slide longest spacers (5/8") onto the screws.
• Slide screws through the receiver board. (May have to twist the screws a few times if board is brand new...then they should slide through)
• Slide next longest spacers onto the screws (7/16").
• Slide Pi board onto the screws ensuring that the 40 pin header is on same side as Receiver header.
• Press the Receiver and Pi boards together ensuring the headers are seated well.
• Slide on the shortest spacers (3/16").
• Slide on the lower panel.
• Secure acorn style nuts to the bottom of the screws.
