Fully assembled and tested with all surface mount components. Features a back porch and is compatible with all ULA versions and Version 1 and 3 Boards. Also features a jumper if you prefer inverted video with white characters on a black background instead of the normal black characters on a white background.

Start really enjoying your TS1000/ZX81 on a modern TV!

There are other adaptors, but this Composite Video Adaptor for the TS1000/ZX81 gives the best results - just check the Timex/Sinclair forums and online product reviews. The results are a joy to behold - the resulting video display is crystal clear.

You can enjoy using your TS1000/ZX81 on modern televisions too.

I have created clear installation instructions for the TS1000s and U. S. ZX81s with Channel 2-3 VHF modulators, (as well as the European ZX81s that have channel 33 UHF modulators).

You can install the ZX8-CCB in the TS1000/ZX81's RF modulator, or you can install the board elsewhere in the the computer without disturbing the RF Modulator and connect it to an external RCA video jack. Because it is not unheard of for the keyboard's flexible cable to become brittle with age and crack if stressed, this second is the more cautious approach because it does not require you to remove the TS1000 circuit board from the top of the TS1000 case and disturb the membrane keyboard.

NOTE: While it is not particularly difficult to install this adaptor, I would only recommend you purchase it if you have good eyesight and are experienced soldering electronic components. I only want happy customers. It is not the case that "anyone can do it".

The photos above show:

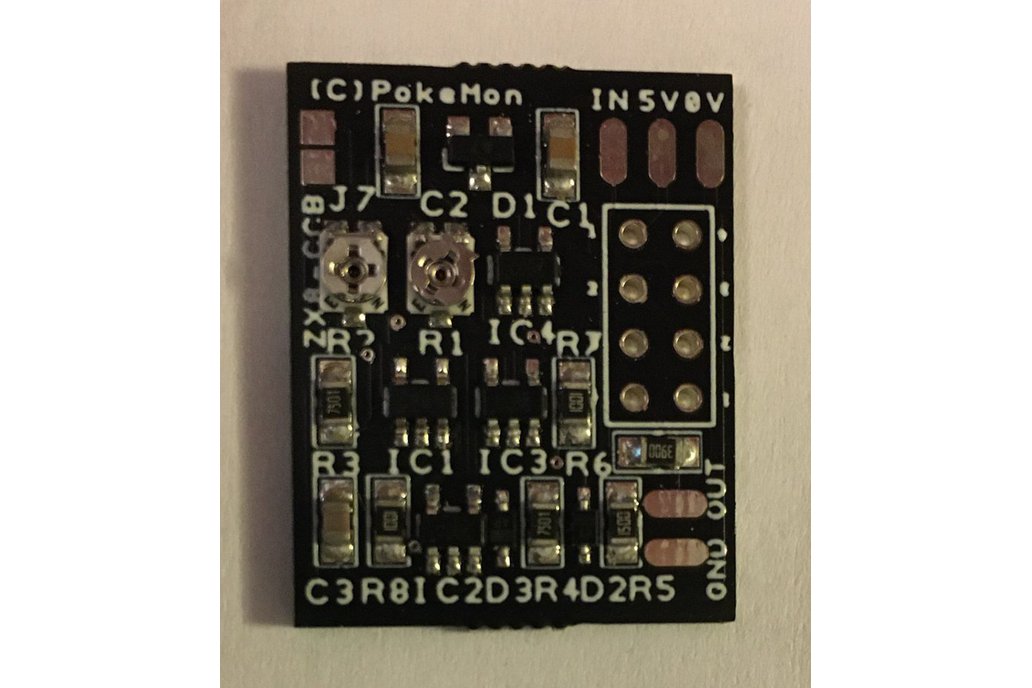

Photo 1 - The ZX8-CCB assembled and tested composite video adaptor

Photo 2 - The ZX8-CCB and what I ship you to make your installation easier: some hookup wire, double sticky tape, and a female chassis mount RCA video jack to use if you decide not to use the RF Modulator for you installation.

Photo 3 - An example installation of the ZX8-CCB installed in place of the RF modulator board on a TS1000

With each ZX8-CCB you will receive

1 - The fully tested ZX8-CCB circuit board assembly 2 - lengths of 3 different color hookup wire 3 - some double-sided double sticky tape 4 - a female RCA video jack you can use if you decide not to use the TS1000/ZX81 RF Video Modulator's video jack 5 - a link to extensive online installation instructions and example installations
