Finally got around to building it (Rev3, and now enjoying 'retro sounds'. Worked first time! As usual for Ed's work, good quality PCB and excellently supported in documentation and software.

Modesto | Jan. 26, 2018

Z80 IDE interface - excellent design

For IDE Adapter PCB for the RC2014 Computer

This PCB is well marked and of good quality. It was very long time i wanted to build a IDE interface for 8bit CPU. I haven't built yet as the cost of the parts is for my wallet quite expensive. I would have used a 82c55 DIP IC version much cheaper than the CS82C55AZ (PLCC version) Althought I understand the need for room on the PCB.
A must have board for the RC2014 system.

Wayne | Jan. 8, 2018

High quality PCB. Worked perfectly on first try.

For YM/AY Sound Card PCB for the RC2014 Computer

Added this module to my RC2014 running CP/M. I was able to play PTX sounds file with no trouble. PCB is well labeled and of good quality. Excellent build instructions provided.

Wayne | Jan. 8, 2018

Perfect IDE storage add-on for RC2014.

For IDE Adapter PCB for the RC2014 Computer

This PCB is well marked and of good quality. It was easy to build the board based on the excellent instructions. It worked perfectly using either CF Cards (via CF-IDE adapter) or spinning IDE hard disk on RC2014 running CP/M.

Tindie

Ed Brindley

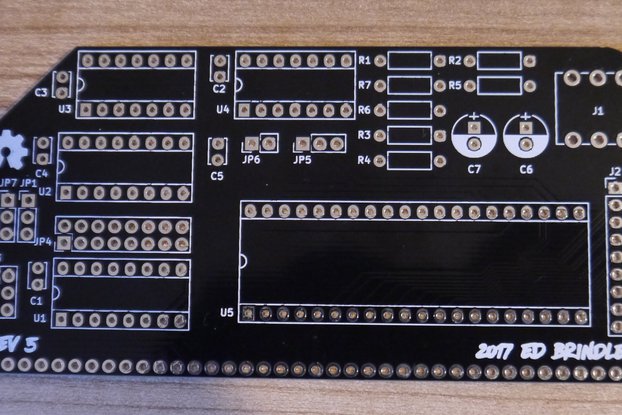

YM/AY Sound Card PCB for the RC2014 Computer

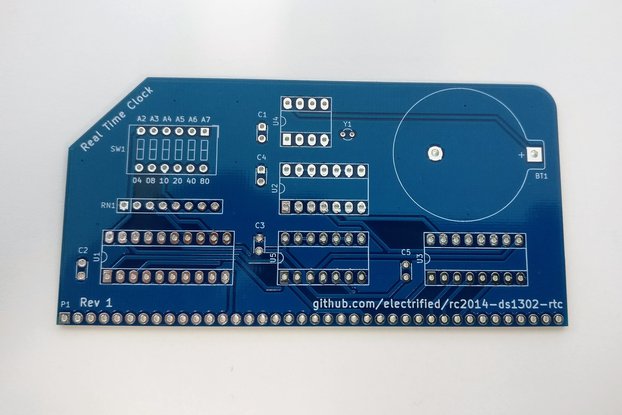

Real Time Clock PCB for the RC2014 Computer

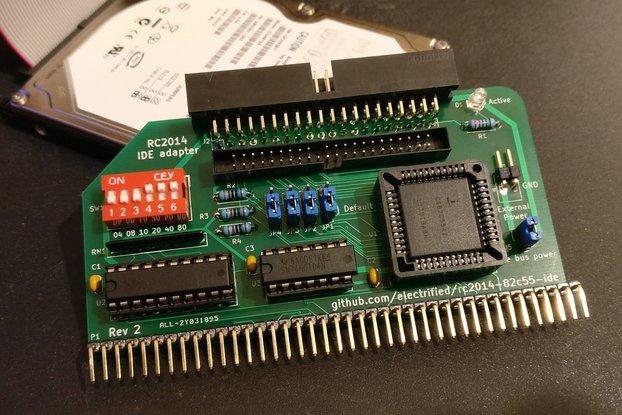

IDE Adapter PCB for the RC2014 Computer

About

Shipping Policies

Rates to

Reviews

Review Breakdown

Average Ratings

Excellent quality & design.

Z80 IDE interface - excellent design

High quality PCB. Worked perfectly on first try.

Perfect IDE storage add-on for RC2014.
