3 Channel Multifunctional Controller with Remote Control HomLiCon LCH3HVL

Controller Features

• Three main modes: • Color Organ,Sound Activated Light Show • , • Light Sequencer • , • Lighting •

• Control of three channels with groups of the following types of lamps: • Incandescent lamps • , • Halogen lamps • , • Dimmable LED lamps / Dimmable LED strips •

• Control of all settings and functions through the remote control included in the kit.

• Switch with a press of a button between the previously saved custom 10 groups, different levels for all channels or Light Show settings.
• Easy save of 10 custom groups, different levels for all channels or Light Show settings.
• Activation of Light Show controlled by sound from microphone(1), Line-in or unsynchronized.
• Fully automatic Color Organ with digital division of the bandwidth in 3 range: LF 50 - 200Hz , MF 200Hz - 7kHz , HF 7 - 14kHz.
• Level Meter with / without AGC (Automatic gain control).
• Automatic or manual switching between different programs of Light Show.
• Adjust sensitivity AGC (Automatic gain control) for Color Organ separately for each frequency channel LF, MF, HF in 4 levels, saved separately for each audio input.
• Equalize or adjust the light intensity for channels in Light Show.
• Smooth change of light intensity when switching on or off each phase-controlled channel.
• Smooth change of light intensity for all channels to reach the preset levels when selecting one of the ten preset functions.
• Ability to set phase control for each channel or ON/OFF option.
• Ability to choose if the channels are off or a saved function is activated when the supply voltage is applied.
• LED on each one of the channels connected to the microcontroller pins for indication and diagnostics.
• Full optically isolated from mains voltage.
• Optron and TRIAC in the output of each channel.
• The controller can be tested via the onboard LEDs, being safely powered only by 12V.

Applications

• Control groups of lamps 120V or 230V
• Color Organ, Sound Activated Light Show, Light Sequencer, etc.
• Home Automation

--------------------------------------------------------

NOTE:

• The device works with HIGH VOLTAGE ! Touching any of the elements of the device when plugged in can be life threatening.
• Outputs do NOT have protection from short circuit or overload. Improper connection will lead to a damaged controller.
• The controller can control lamps for 120V or 230V that allow dimming: Incandescent lamps, Halogen lamps, Dimmable LED lamps. Using lamps that do not allow dimming may damage the lamp and controller. Dimmable LED lamps is recommended to be connected via a series resistor that limits the inrush current.
• Line-in audio signal must be from the Line-out of a player, computer (green jack) or smartphone. Do not use a speaker output from amplifier or car audio. Adjust (increase) the level of the player until the channels start to turn on.

--------------------------------------------------------

--------------------------------------------------------

Technical Specifications LCH3HVL

--------------------------------------------------------

PDF DOWNLOADS

USER GUIDE

Videos

Video 1 - HomLiCon LCH3HV - Incandescent Lamps

Video 2 - HomLiCon LCH3HV - LED COB

--------------------------------------------------------

Package Includes Options:

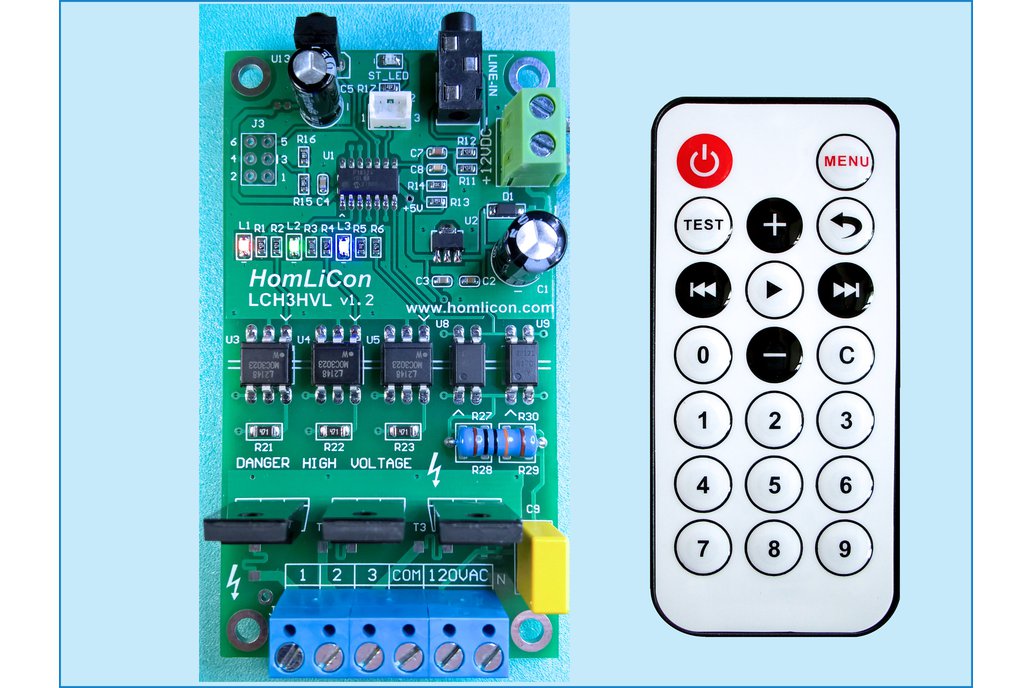

• Fully Assembled and Tested Controller: LCH3HVL
• IR Remote Control (battery CR2025 not included)

If microphone module MACL - Included (Option 2):

• Microphone Module MACL (assembled and tested)
• Cable 1.25 - 1.25 3p

--------------------------------------------------------

Usually ships within 5 business days.

International orders may be subject to duties, taxes, import fees, etc. These fees are not included in the price of the products, or the order total. These fees are the sole responsibility of the buyer.

--------------------------------------------------------

----- Lifetime email technical support ----------
